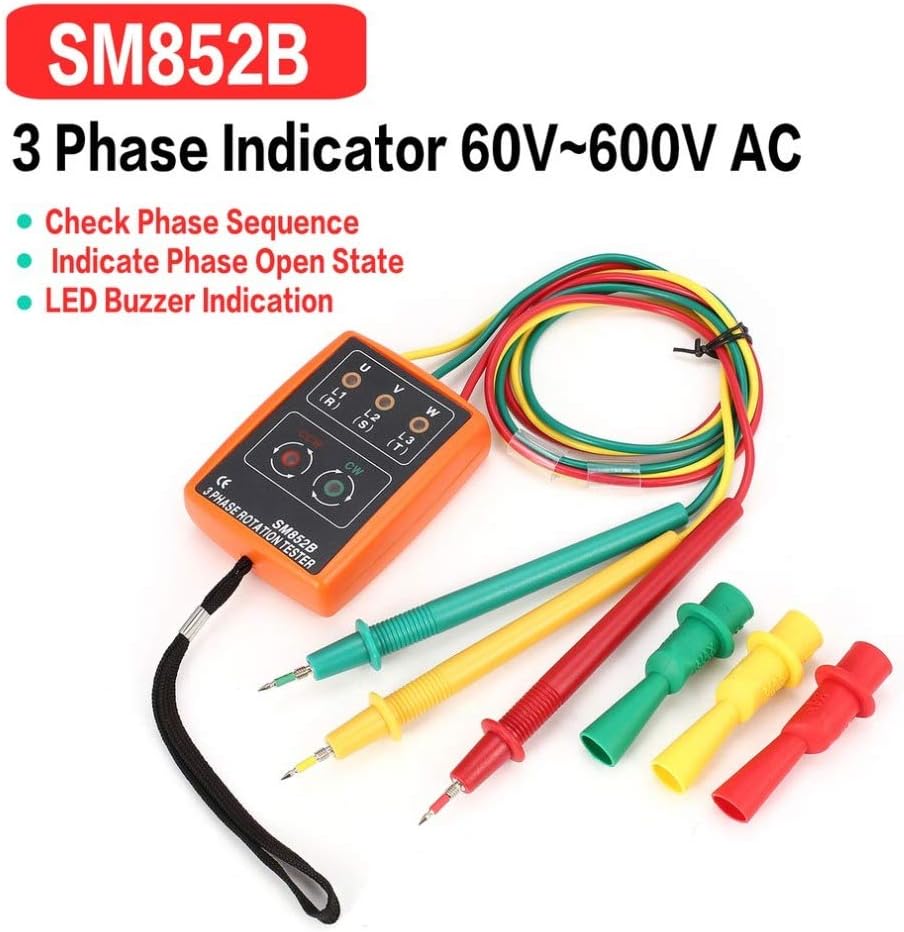

SM852B 3 Phase Rotation Tester Digital Phase Indicator Detector LED Buzzer Phase Sequence Meter Voltage 60V~600V

Specifications:Model:SM852BOperation voltage:60V600V AC three phaseLimit support voltage:2000V/minute (impulse voltage 4000V)Operation frequency range:20Hz400HzLimit time for continuous use:60 minutes maximum at 60V AC4 minutes maximum at 600V ACPhase Sequence Indicator LED: Green for correct phase sequence,intermittent beepRed for reverse phase sequence,continuous beep Test pen and cable length:80cmSize:80 x 60 x 24mmItem Weight:135g Package Information:Package Size:17 x 11 x 4.6cm / 6.7 x 4.3 x 1.8inPackage Weight:239g / 8.4oz

• Features:1.One Unit with two functions:Check the phase sequence and indicate the phase is open or not.2.Safe and reliable:With alligator clips, easily involve the terminals of the control panel, guaranteeing reliability and safety. 3.Wide voltage test:It can check 60V to 600V AC three-phase voltage,high performance.4.Easy to use:With LED light to show if the phase is open or not,supports buzzer indication. 5.Portable design:Small and light weight,with a carrying bag,
• onvenient to take. Description:This SM852B three-phase rotation tester is designed to check the phase sequence and show if the phase is open or not.
