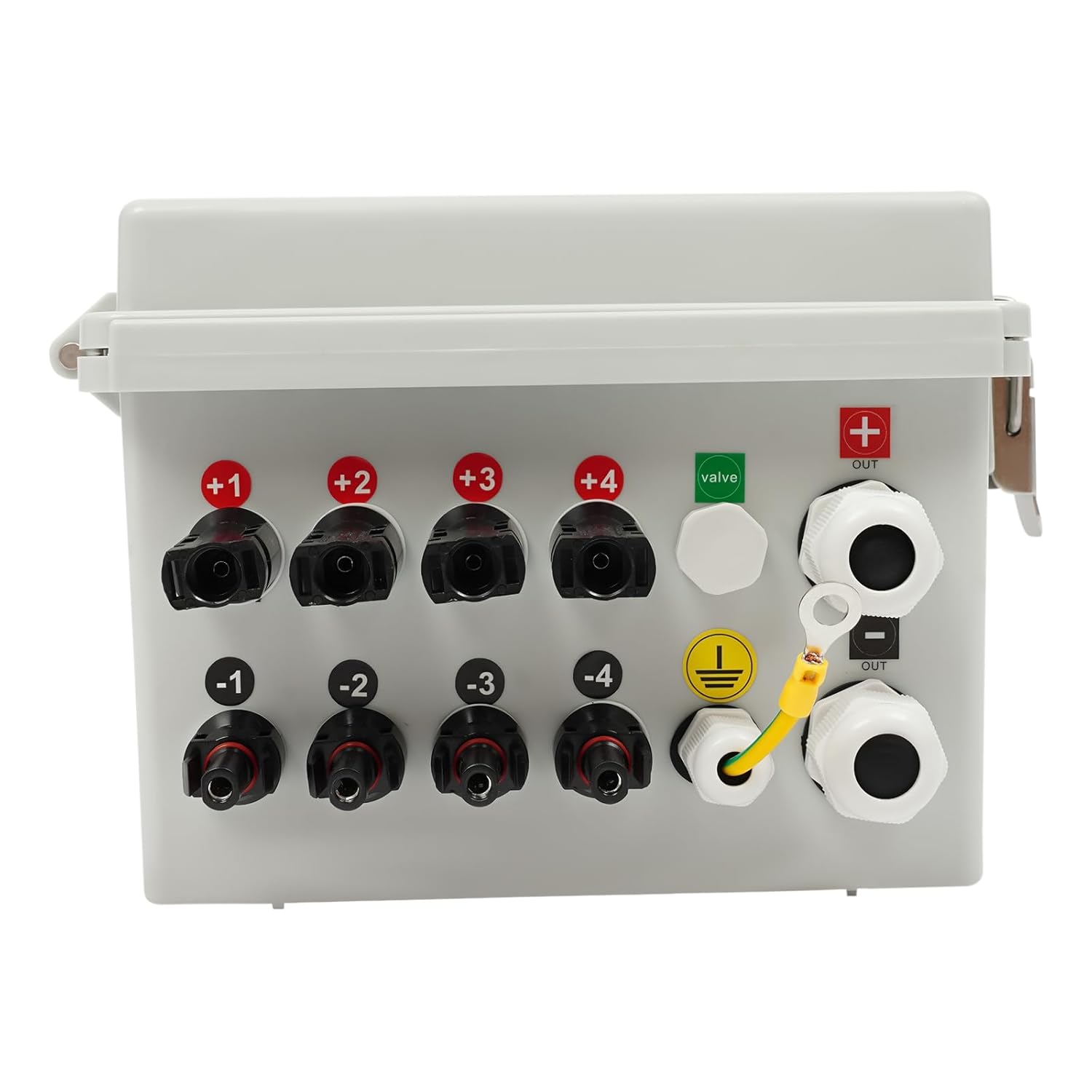

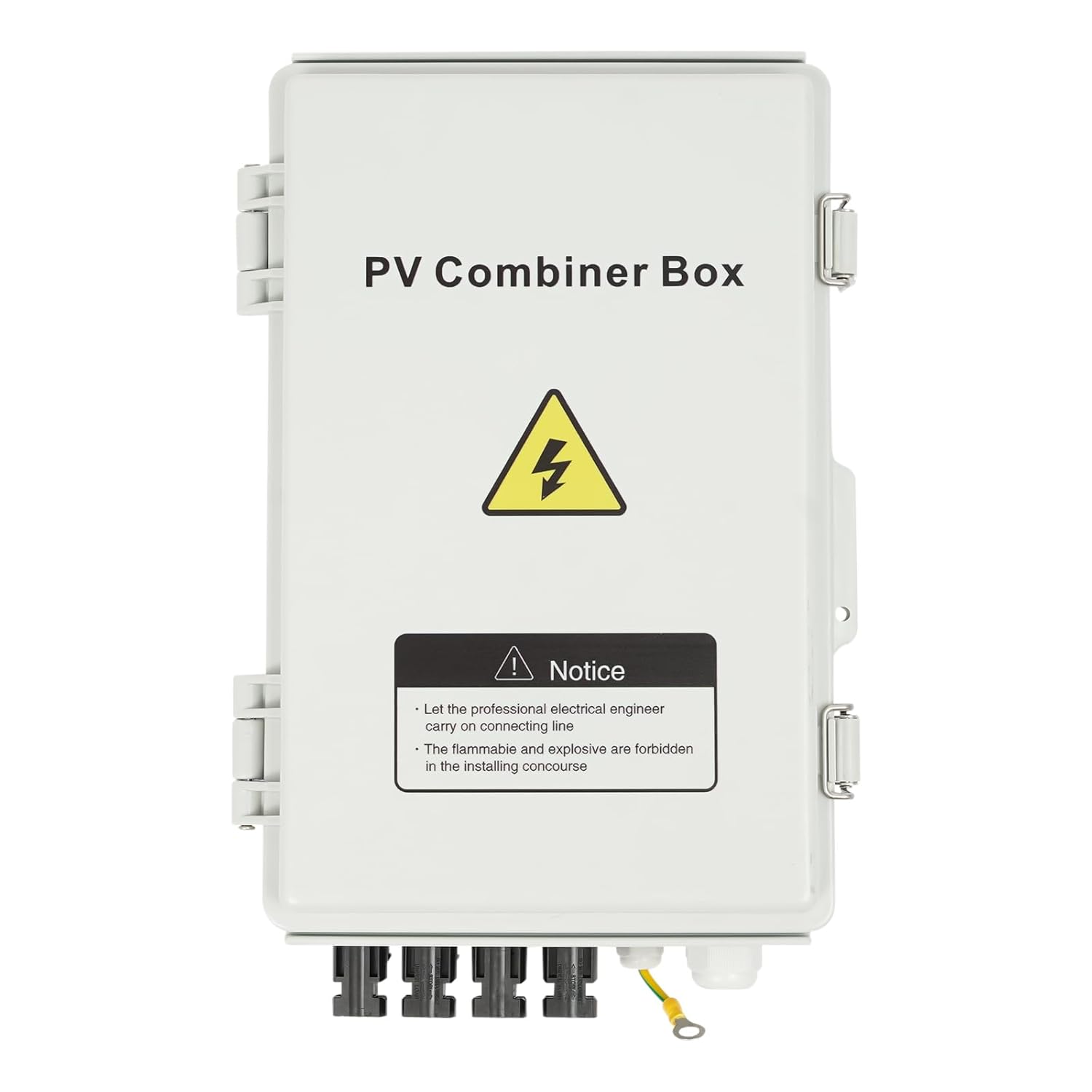

4 String Solar Combiner Box PV Combiner Box with 10A Rated Current Fuse, Surge Protective Device and 63A Air Circuit Breaker for On/Off Grid Solar Panel System (4 String)
Product details
| Management number | 215627706 | Release Date | 2026/04/12 | List Price | $26.36 | Model Number | 215627706 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Color: WhiteMaterial: ABS, PCStyle: ModernCircuit Breaker Type: StandardMounting Type: Wall MountOperating Temperature: -30~70℃/-22~158℉Input: 4 StringsOutput: 1 StringNumber Of Poles: 4 Current Rating: 63ANumber Of Max. Connection PV Array: 4Max. Input Current of Single PV Array: 10ATotal Input Current of PV Array: 40AMax Input Voltage of Single PV Array: 1000VMax Output Voltage: 600VProtection Grade: IP65Relative Humidity: 0-95%, No CondensationCooling Method: Natural CoolingNumber of Surge Protection Devices: 2Surge Protection Device: 40KA, 600VNumber of Circuit Breakers: 1Circuit Breaker: 63A, 550VProduct Size: 21*14.5*33cm/8.26*5.7*13inchPackage Size: 20*23*12cm/7.87*9.05*4.72inchNet Weight: 2.8kg/6.17 lbsGross Weight: 3kg/6.6 lbsPackage Included:1* PV Combiner Box1* Combination Lock4* Mounting PlatesOther Accessories for Assembly
- 【Advanced Protection】: JAYEUW solar combiner box features 10A fuses and surge protectors to safeguard your solar panels and inverters from overloads, short circuits, and lightning strikes, ensuring long-term system reliability.
- 【Quick Installation】: Pre-wired with specialized solar cables and a built-in grounding connector, this PV combiner box simplifies setup. Its lockable metal housing offers security and durability for outdoor use.
- 【Wide Compatibility】: Ideal for residential off-grid systems, factory grid-ties, and public solar projects. The IP65 waterproof rating protects against harsh weather conditions, ensuring consistent performance.
- 【Visual Status Monitoring】: Equipped with a clear indicator window for real-time fuse status checks, this solar combiner box provides immediate feedback to maintain system safety and efficiency.
- 【Multi-Layer Safety】: Incorporates non-reverse connection, rapid disconnection, and overload protection features. JAYEUW PV combiner box guarantees secure operation for your solar energy system.
| Brand Name | JAYEUW |
|---|---|
| Phase Type | Single Phase |
| Item Weight | 6.2 Pounds |
| Manufacturer | JAYEUW |
| Material Type | Plastic |
| Number Of Circuits | 1 |
| Item Dimensions L x W x H | 8.3"L x 5.7"W x 13"H |
